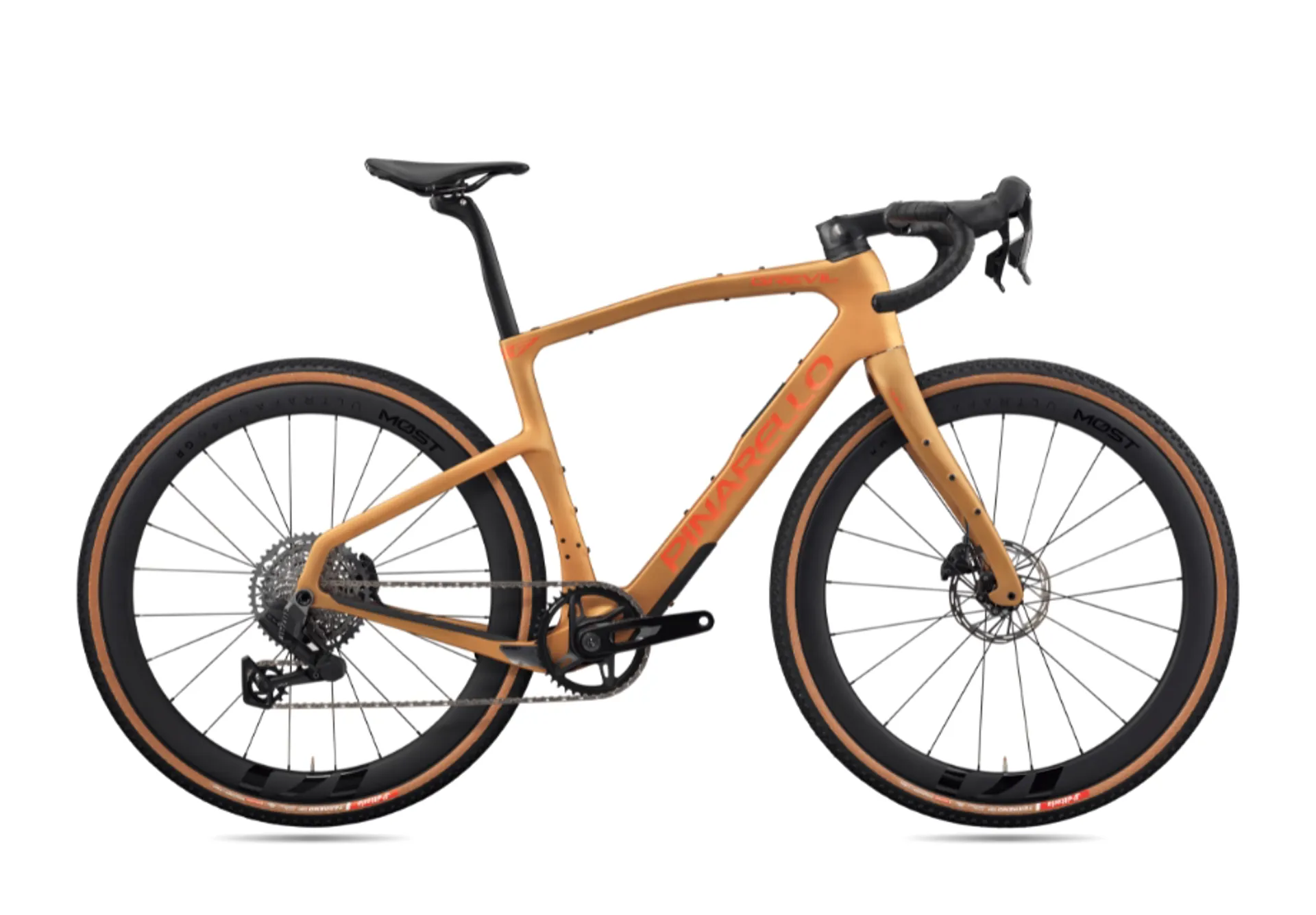

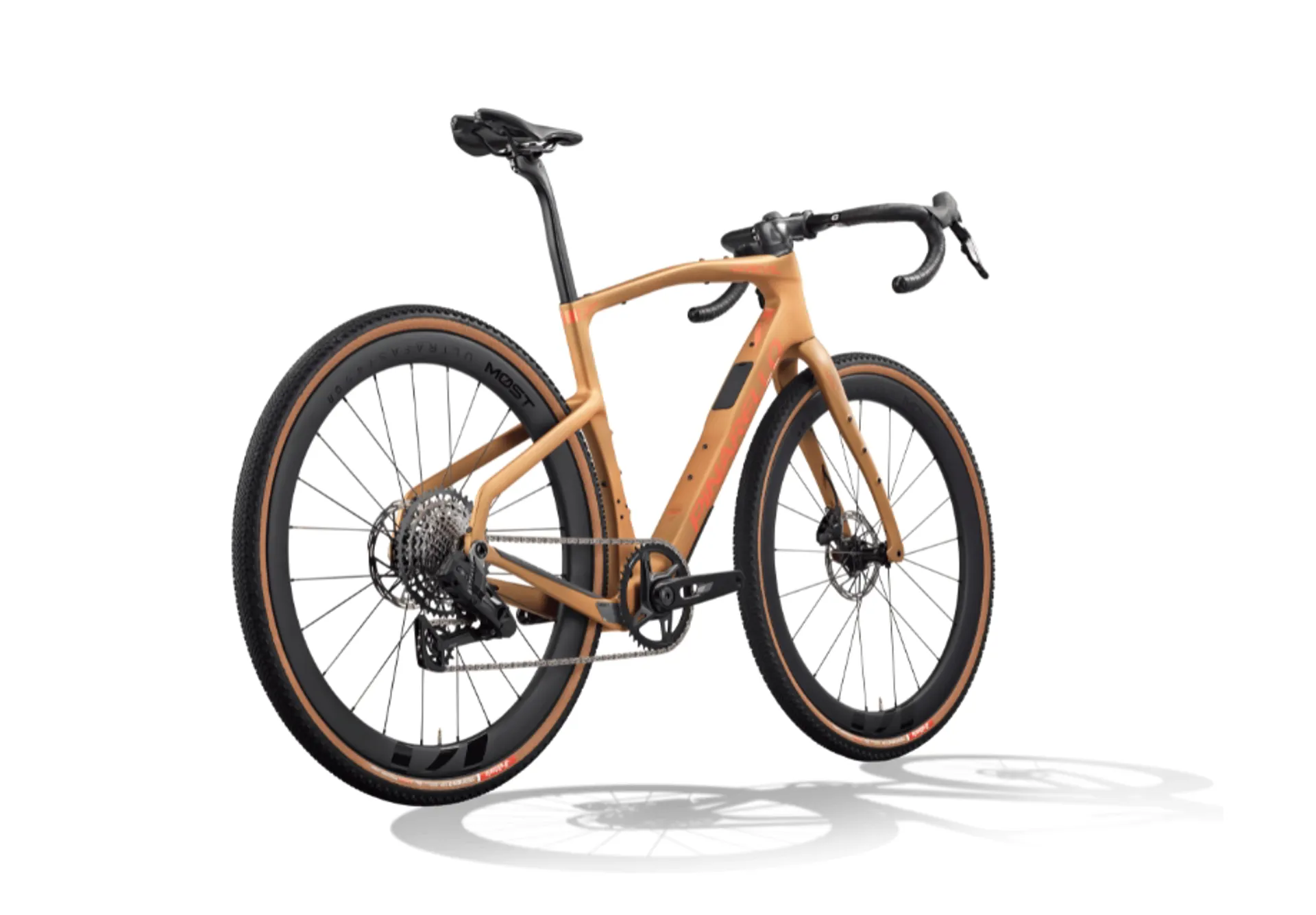

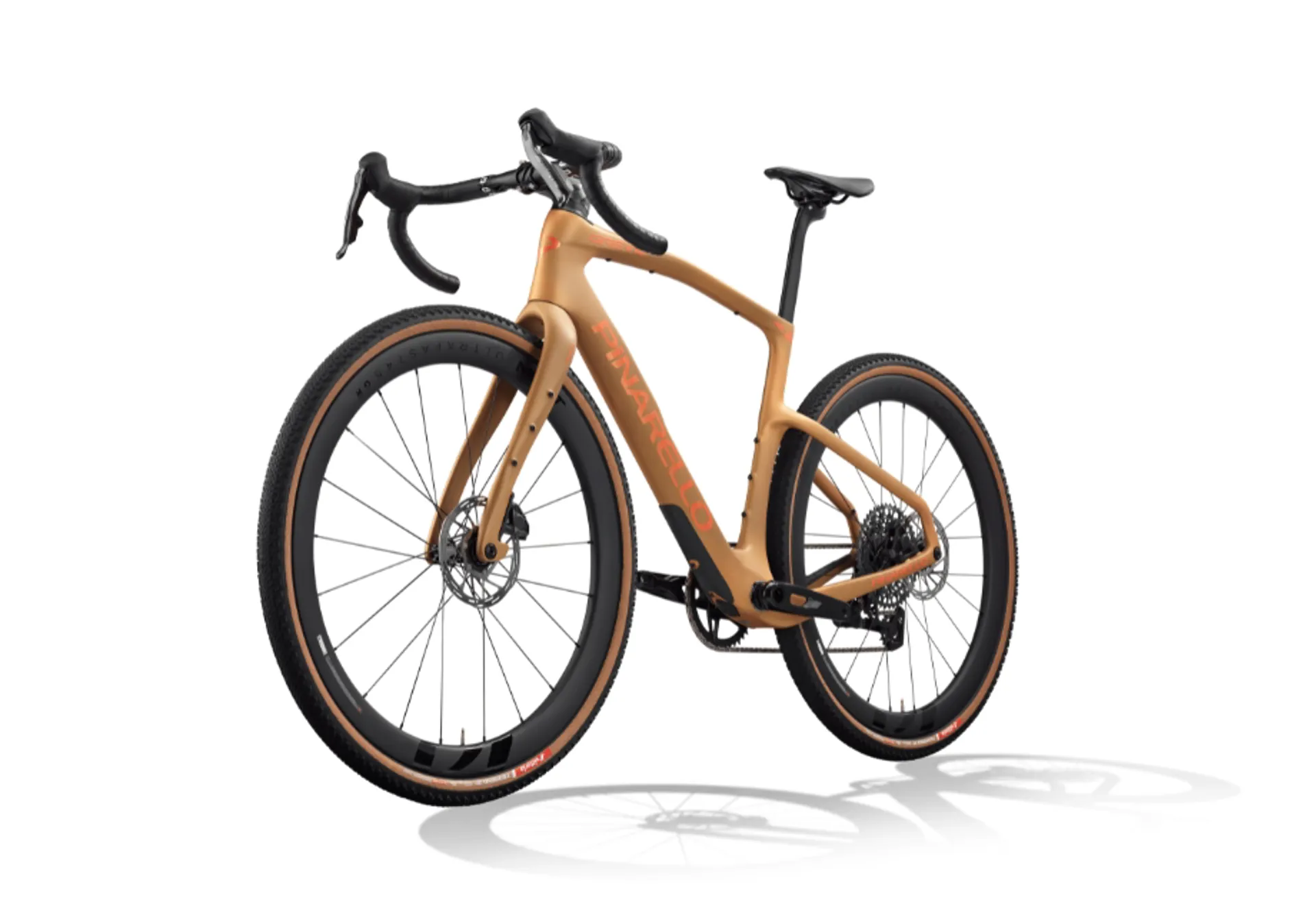

Pinarello Grevil F5 SRAM Rival XPLR AXS in Namid Brown

Season:2026

Brand:Pinarello

Code:C2161253223-33834

The new generation of Grevil F is lighter, faster, and designed to be ridden for days on end. No matter the conditions or the duration of the race, the bike’s versatility provides the perfect solution to help you compete to win.

SOLODYNAMICS

The aerodynamics of the new Grevil F are designed to excel in long-distance solo races. Precisely for this reason we have developed all the accessories to be as aerodynamic as possible to save as many watts as possible. This new concept of accessories to facilitate solo racing includes: the TT gravel bars, the frame bag, the racing bento, the toolbag, and for ultra-long distances, the rack bag.

FRAMEBAG

Designed to be both aero and attach securely, the new frame bag uses a magnetic system from Fidlock to attach to the frame. This lightweight solution ensures total balance and reliability over rough terrain. Ease of use allows fast access for quick service stops during races.

GRAVELTT BARS

  • Clamped solution on rounded handlebar Jaguar.
  • Adjustable reach and stack on extension and pads.
  • Computer mount integrated into the extension.
  • Adjustable tilting.

ADAPTIVESEATPOST

The new adaptive seatpost has a longitudinal flex of 10 mm, is lighter and more efficient when it comes to absorb vibration.

TWINARMS

The new TWIN ARMS seatstays solution works in conjunction with the adaptive seatpost to absorb vibration, ensuring exceptional traction even on the roughest trails.

DOWNTUBE

The down tube has been specially designed to improve aerodynamic efficiency when using 750 ml bottles. The inclusion of storage space, easily accessible without having to remove the bottle cage, to fit an integrated tool bag inside the down tube removes the need to use a saddle bag, which also improves aerodynamics to save precious watts.

NEWONDA FORK

Elegantly shaped with a sleek profile and calculated curvature, the Onda Fork enhances the ride quality with its compliance and improves handling thanks to its reduced weight compared to the previous Grevil F.

Technical Information

FRAME SET

Frame: Toray T700 UD
Fork: F Onda Fork with ForkFlap™, tapered head tube


DRIVETRAIN

Crankset & Chainrings: SRAM Rival AXS XPLR 1x13
Cassette: SRAM Rival
Chain: SRAM Rival
Bottom Bracket: SRAM DUB Italian 70mm (Road Wide)


BRAKES

Front Brake Disc: SRAM Rival 2-piston, 160mm rotor
Rear Brake Disc: SRAM Rival 2-piston, 160mm rotor


COCKPIT

Handlebar: JAGUAR XA GR TiCR
Stem: TIGER Alu Aero TiCR
Bar Tape: MOST Ultragrip Evo 3mm – Black
Saddle: MOST Lynx My26
Seatpost: D-Shape Seatpost
Seat Clamp: Classic seat clamp


WHEELS & TYRES

Tyres (Disc): Vittoria Terreno T50 45
Wheelset (Disc): MOST Gravel Carbon 45
Axles (Disc): New MOST Ultra Light Custom Axle – 12x100 & 12x142, tool-free removal
