The Stereo Hybrid ONE77 HPC frame is designed for big mountain trails.
The Stereo Hybrid ONE77 HPC frame is designed for big mountain trails.
Cube

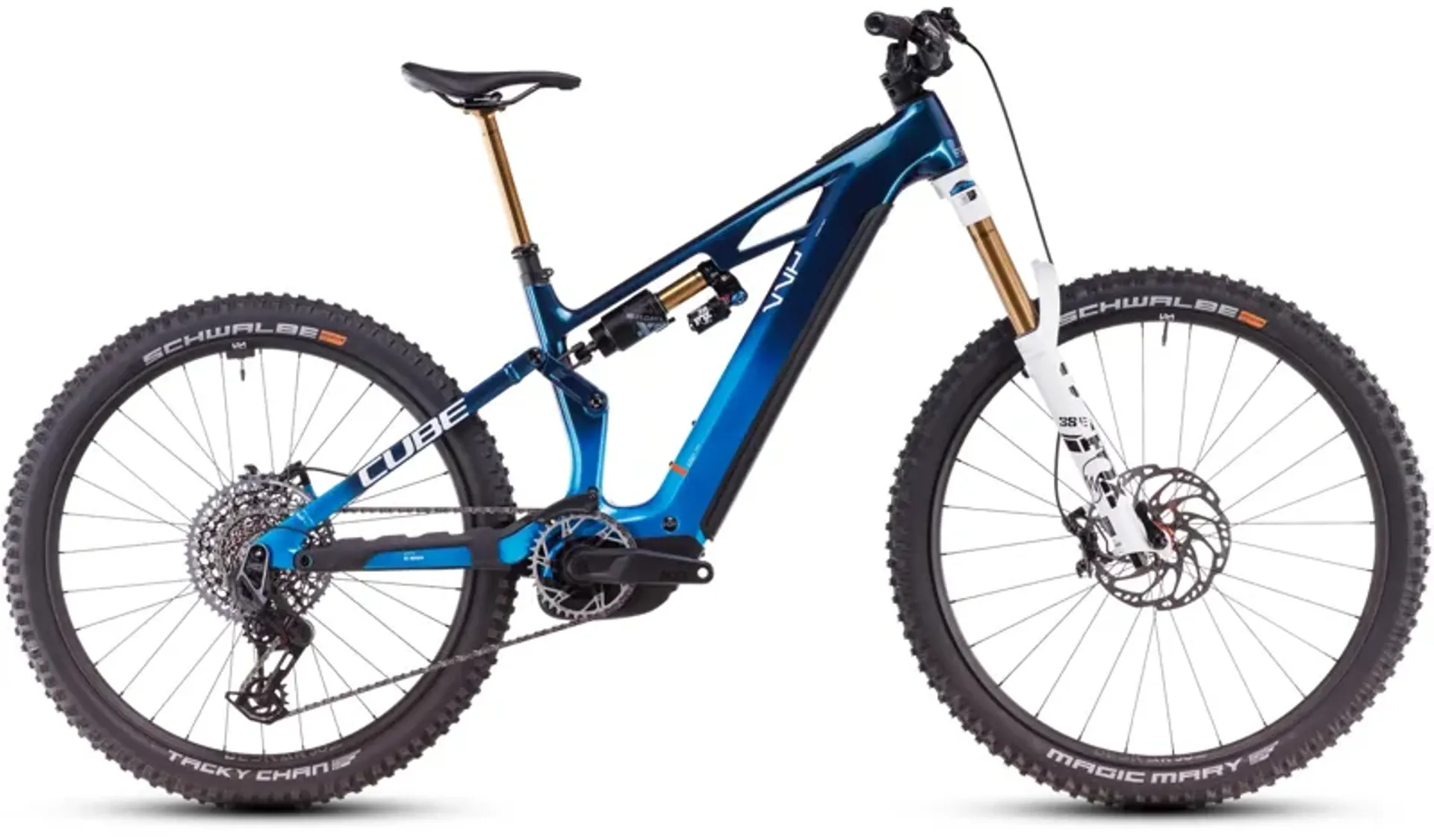

Cube Stereo Hybrid ONE77 HPC AT 800 Carbon Mountain Bike in Actionteam

£6,499.00
Size Guide
Cube Stereo Hybrid ONE77 HPC AT 800 Carbon Mountain Bike in Carbon/Gold
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Cube Stereo Hybrid ONE77 HPC AT 800 Carbon Mountain Bike in Actionteam

Season:2025

Brand:Cube

Code:803510action

The Stereo Hybrid ONE77 HPC frame is designed for big mountain trails.

With 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear, it is all you need for big days out. As with all CUBE designs, the devil is in the detail. Integrated Cable Routing provides super-clean looks and reduced maintenance.

The PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof. An angle-adjustable headset allows you to tweak the handling to your taste.

Features:

  • 170mm travel front and rear.
  • Mullet wheel setup with 29in front and 27.5in rear.
  • Integrated Cable Routing for clean looks.
  • Angle-adjustable headset for customizable handling.
  • PowerTube battery in carbon down tube.
  • UDH dropout on aluminium rear triangle.
  • Direct mount chainguard for rough conditions.
Technical Information

Frame

Frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Fork: Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimised, 170mm, Kashima Coated
Shock: Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated

E-Bike System

Motor: Bosch Performance Line CX Gen 5 (BDU38), 85Nm (up to 100Nm from July 2025), Smart System
Battery: Bosch PowerTube 800
Display: Bosch Purion 400

Drivetrain & Brakes

Front Brake: Shimano XT BR-M8120, Hydraulic Disc Brake (203/203)
Rear Brake: Shimano XT BR-M8120, Hydraulic Disc Brake (203/203)
Rear Derailleur: Sram X0 Eagle AXS™ Transmission, 12-Speed
Shifter: Sram AXS™ Pod Controller
Crankset: Acid MTB Hybrid Pro, 36T
Cassette: Sram XS-1275, 10-52T
Chain: Sram GX Eagle™ Transmission

Cockpit

Headset: Acros AZF-675, ICR Zero-Stack 1 1/2" (ZS 56mm), Fibre Inserts for Angle Adjustment, X-Connect Interface
Handlebar: RaceFace ERA 35
Stem: Cube Performance Stem E-MTB 35, FPI-Link
Grips: Acid Disrupt, Soft Compound

Wheels & Tyres

Wheels: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Front Tyre: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4

Finishing Kit

Saddle: Acid Venec EMTB Trail 140
Seatpost: Fox Transfer Factory 31.6mm, Kashima Coated
Seatpost Clamp: Cube Semi-Integrated
Pedals: Supplied without pedals
