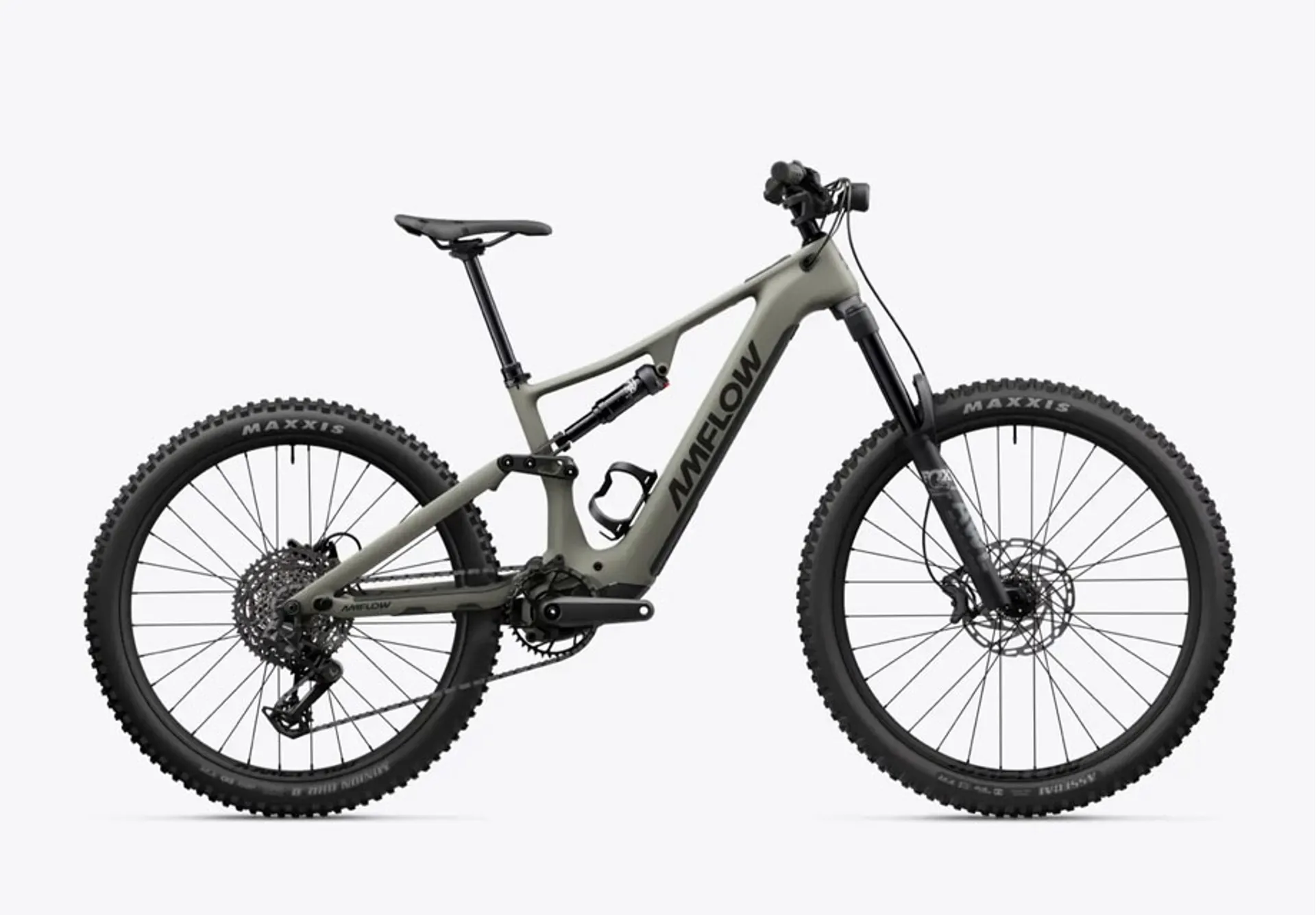

The Amflow PR Carbon is a high-performance full-power e-MTB built for aggressive trail and enduro riding. Featuring the Avinox M2 drive unit with up to 125Nm peak torque, an 800Wh removable battery, FOX suspension, SRAM Eagle Transmission, and adjustable geometry, it delivers serious capability at an exceptional price point.

Available to pre-order now - email team@cycle360.com and a member of our team will be in touch to proceed.
The Amflow PR Carbon is a high-performance full-power e-MTB built for aggressive trail and enduro riding. Featuring the Avinox M2 drive unit with up to 125Nm peak torque, an 800Wh removable battery, FOX suspension, SRAM Eagle Transmission, and adjustable geometry, it delivers serious capability at an exceptional price point.

Available to pre-order now - email team@cycle360.com and a member of our team will be in touch to proceed.
Amflow

Amflow PR Carbon

£3,999.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Amflow PR Carbon

Season:2026

Brand:Amflow

Code:AmflowPRCarbon

The Amflow PR Carbon is designed for riders who want full-power e-MTB performance without compromise. Built around the lightweight Amflow PR Carbon frame, it combines aggressive trail geometry with 40 possible adjustment configurations, giving riders the ability to fine-tune the bike for different terrain, riding styles, and wheel setups.

Power comes from the Avinox M2 drive unit, producing 110Nm nominal torque and up to 125Nm peak torque for steep climbs, technical sections, and all-day riding. An 800Wh removable battery provides impressive range, while the 2-inch OLED control display and wireless bar controls keep everything intuitive on the trail.

The PR Carbon is equipped with FOX suspension front and rear, including a 160mm FOX AWL HD Sport fork and FOX Float Rhythm rear shock for confident handling over rough terrain. SRAM Eagle Transmission drivetrain components deliver crisp electronic shifting, while powerful 4-piston hydraulic brakes and a mullet wheel setup provide control and stability on demanding descents.

With premium features including adjustable geometry, tubeless-ready wheels, Maxxis tyres, integrated lighting, and a dropper post with adjustable travel, the Amflow PR Carbon is a serious e-MTB for riders looking for maximum value and trail-ready performance.

Technical Information

Frame

  • Amflow PR Carbon Frame
  • Moss Green
  • 40 adjustable geometry configurations
  • Compatible with 27.5” and 29” rear wheels

Geometry Adjustment Details

  • 5 headset angle settings
  • 2 bottom bracket height settings
  • 4 chainstay length settings

These can theoretically create up to 40 geometry configurations depending on riding style and terrain.

E-Bike System

  • Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m
  • Avinox Screen: 2-inch OLED Control Display
  • Avinox Removable Battery: 800Wh
  • Avinox Wireless Controllers: Right and left sides
  • Avinox Charger: 4A / 168W

Suspension

Rear Shock

  • FOX Float Rhythm (MY 2027)
  • Custom tune
  • LSR adjustment
  • 210×55mm air shock

Fork

  • FOX AWL HD Sport (MY 2027)
  • 160mm travel
  • RAIL 2.0 damper
  • Sweep / LSR adjustment
  • 15×110mm
  • 44mm offset

Drivetrain

  • Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
  • Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
  • Shift Levers: SRAM AXS Pod Controller
  • Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
  • Chain: SRAM Eagle 70 Transmission Flattop Chain
  • Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
  • Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

  • Tektro TKD173 Hydraulic Disc Brake
  • 4-piston calipers
  • Amflow custom
  • Tektro Sensor Rotor, 203mm, 2.3mm

Wheels

  • Amflow XMA-30 Mullet Version
  • Front Rim: Alloy, 29”, 30mm inner width, 32H, tubeless ready
  • Rear Rim: Alloy, 27.5”, 30mm inner width, 32H, tubeless ready
  • Spokes: SAPIM E-Light
  • Front Hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 32H, 6-bolt
  • Rear Hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls, 36T, HG

Tyres

  • Front: Maxxis Assegai, 29×2.50, 3C MaxxGrip / EXO+ / TR
  • Rear: Maxxis DHR II, 27.5×2.50, MaxxTerra / DD / TR

Cockpit and Finishing Kit

  • Handlebar: Amflow Enduro Alloy Handlebar, 40mm rise, 800mm width, 35mm diameter, 5° upsweep, 9° backsweep
  • Grips: Amflow Enduro Grip 2 Lock-on Grips
  • Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamp diameter
  • Saddle: Amflow Mountain Saddle

Dropper Post

  • Adjustable travel: 0 / 5 / 10 / 15 / 20 / 25mm
  • M Frame: 190mm
  • L / XL Frame: 210mm
  • XXL Frame: 230mm
